Patch Cables (Network & Fiber)

Patch cables are short, flexible cables used to connect network devices, such as computers, servers, switches, and routers, within a local area network (LAN). These cables are typically used to establish temporary connections or make quick changes in network configurations. Here are some key points about patch cables:

1. Types of Patch Cables:

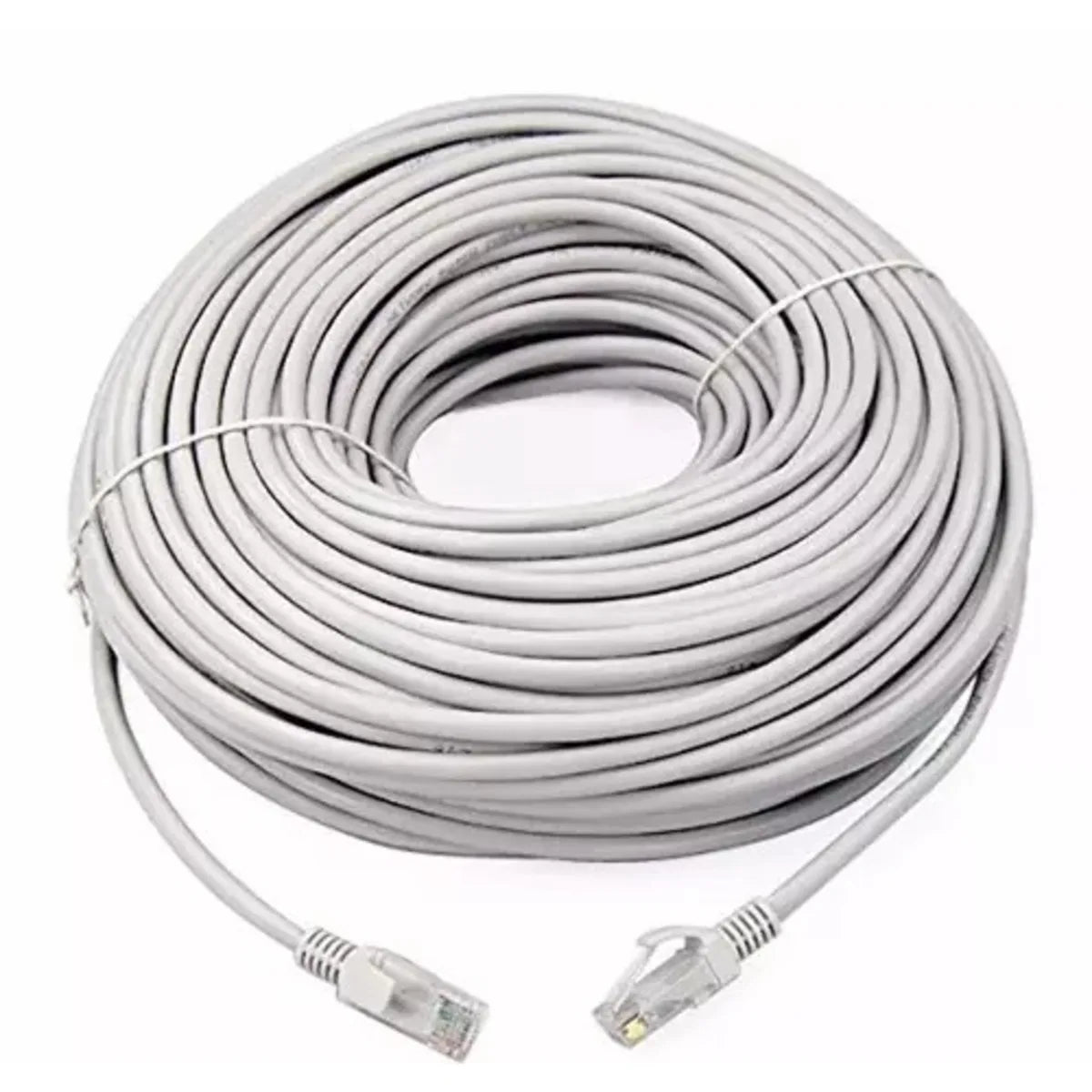

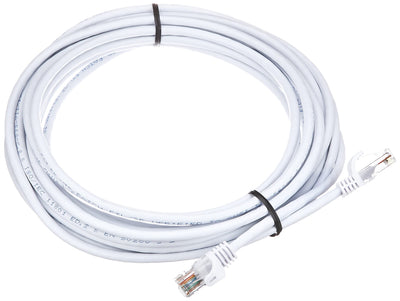

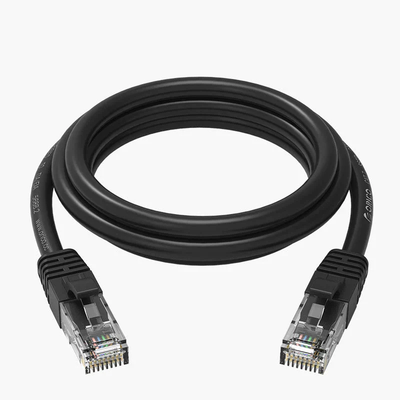

   • Ethernet Cables: Patch cables for Ethernet networks are commonly known as Ethernet cables. The most common types are Cat5e, Cat6, Cat6a, and Cat7, each offering different levels of performance and bandwidth.
   • Fiber Optic Cables: In situations where higher data transfer rates or longer distances are required, fiber optic patch cables are used. These cables use optical fibers to transmit data using light signals.

2. Connectors:

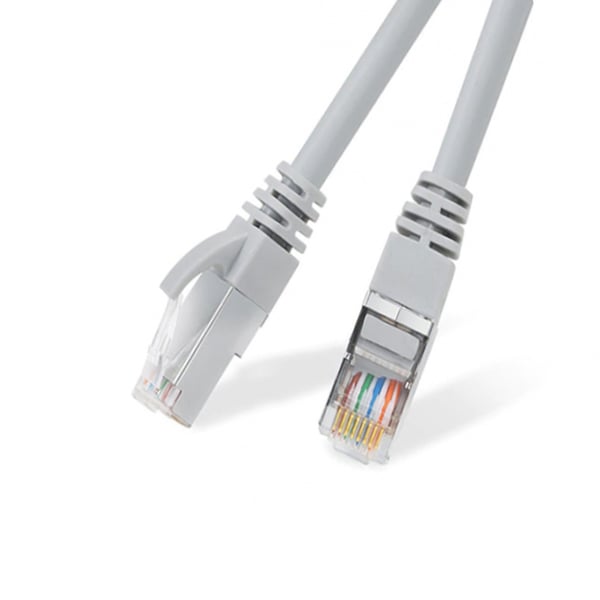

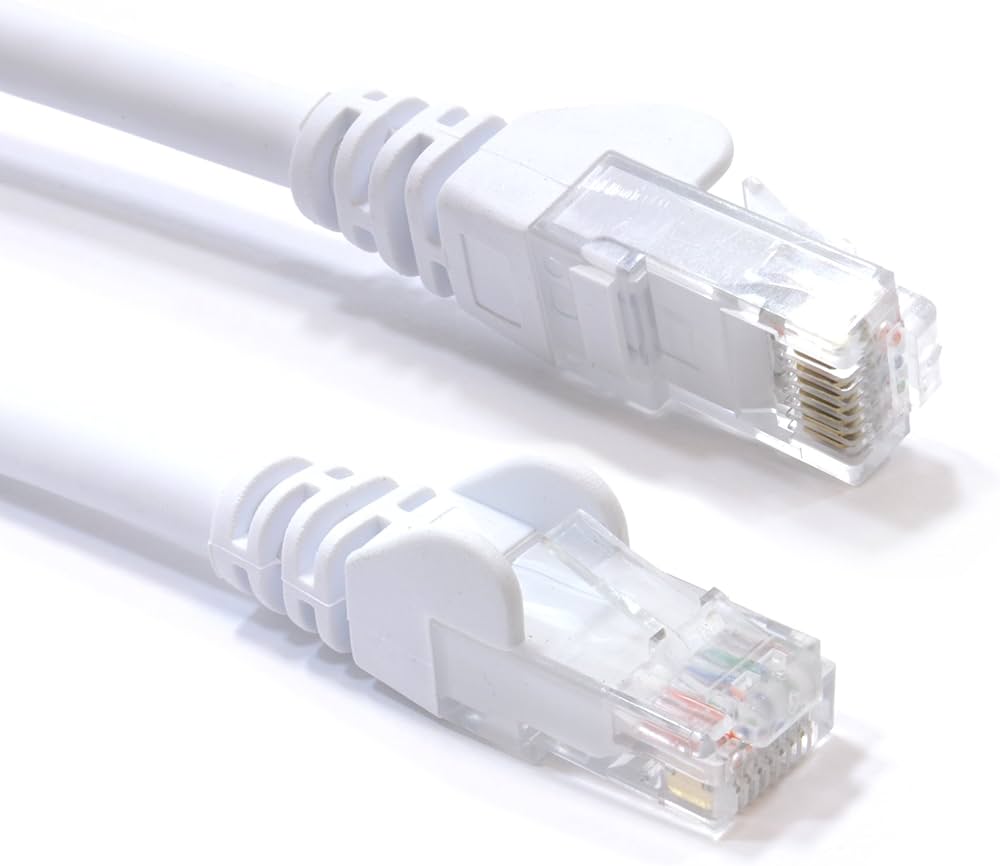

   • RJ45 Connectors: Ethernet patch cables typically use RJ45 connectors, which are standard connectors for Ethernet networks. They have eight pins and are used for both Cat5e and Cat6 cables.
   • LC, SC, ST, MTP/MPO Connectors: Fiber optic patch cables use various connectors depending on the type of cable and the equipment being connected.

3. Colors:

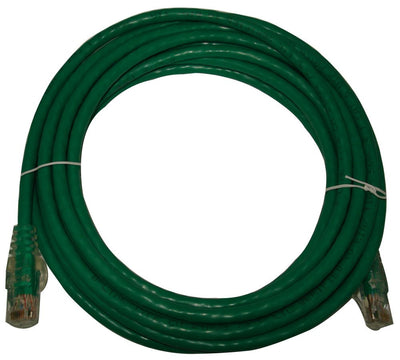

   • Ethernet patch cables are often color-coded to distinguish between different functions or to help with cable management. Common colors include blue, gray, yellow, and red.

4. Lengths:

   • Patch cables come in various lengths, ranging from a few inches to several feet. The length you choose depends on the specific requirements of your network setup.

5. Straight-Through and Crossover Cables:

   • Straight-Through Cables: Used to connect different types of devices, such as a computer to a switch or router.
   • Crossover Cables: Historically used to connect similar devices, like two computers directly. However, modern networking equipment often has auto-sensing ports, making crossover cables less necessary.

6. Use Cases:

   • Patch cables are commonly used in data centers, server rooms, and office environments to connect devices to switches or routers.
   • They are also handy for quick connections during troubleshooting, testing, or temporary setups.

7. Quality Matters:

   • It's important to use high-quality patch cables to ensure reliable and consistent network performance. Poorly made cables can result in signal degradation and network issues.

8. Maintenance:

   • Regularly inspect and replace damaged or worn-out patch cables to maintain a stable network connection.
